Brand: Wacker Neuson
Model Number: 5100050024
$29,995.00 $37,995.00
Compact, Reliable Power for Every Job Site

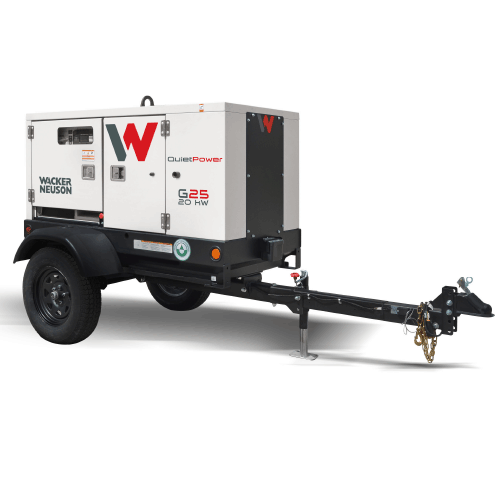

The G25 Mobile Generator is the perfect power solution for contractors, rental houses, and event operators who demand quiet, reliable, and efficient performance. Designed with a compact, sound-attenuated enclosure, it provides both single- and three-phase power for construction, commercial, industrial, and special event applications. With a digital controller for real-time monitoring and an extended run time, the G25 ensures your job site keeps running without interruptions.
Optional:
Pintle Hitch 3in adjustable
Trailer Axle, Elec Brake
For other accessories reach out to us.
Programmable Controller – Easy monitoring and control via LCD display
Kohler KDI Engine – Proven reliability and EPA Tier 4 Final compliance
G25 Long Run Time – Up to 54 hours at 50% load
Powerful and Precise Alternator – AVR-regulated brushless system
Compact Cabinet and Easy to Transport – Fits job sites, trailers, and storage with ease
Built for Tough Jobsites
Delivers continuous power for lighting, cranes, mixers, and conveyor belts in harsh environments.
Superior Motor Starting
Equipped with oversized, brushless alternators with AVR and separate excitation winding for consistent performance and support of non-linear loads.
Unmatched Ease of Use
Single-switch startup and simplified control panel minimize operator training.
Remote Start Ready
Standard automatic remote start feature makes it ideal for standby power applications.
Enhanced Safety and Custom Options
Comes with a standard fluid containment system. Optional factory-installed packages include cold-weather kits, highway trailers, and camlock panels.
| Specification | Metric | Imperial |
|---|---|---|
| Generator Manufacturer | Mecc Alte | Mecc Alte |
| Voltage (3-phase) | 240 V | 240 V |
| Voltage Accuracy | ±1.0% | ±1.0% |
| Rating (3~ Continuous) | 25 kVA | 25 kVA |
| Voltage (Single-phase) | 120 V | 120 V |
| Rating (1~ Continuous) | 15 kVA | 15 kVA |
| Output Current (3~) | 30.0 A | 30.0 A |
| Output Current (1~) | 62.0 A | 62.0 A |
| Generator Specification | AVR without Brushes | AVR without Brushes |
| Insulation Class | H | H |
| Specification | Metric | Imperial |
|---|---|---|
| Run Time (Prime Load) | 33.6 hrs | 33.6 hrs |
| Run Time (50% Load) | 54.0 hrs | 54.0 hrs |
| Run Time (75% Load) | 41.7 hrs | 41.7 hrs |
| Fuel Consumption (Prime Load) | 6.7 L/hr | 1.8 GPH |
| Cooling Fluid Volume | 11.5 L | 12.2 qt |
| Specification | Metric | Imperial |
|---|---|---|
| Engine Manufacturer | Kohler | Kohler |
| Engine Type | Diesel | Diesel |
| Cylinders | 3 | 3 |
| Displacement | 1,861 cm³ | 113.6 in³ |
| Fuel Type | Winter Blend Diesel No. 2 | Winter Blend Diesel No. 2 |
| Starter Battery Voltage | 12 V | 12 V |
| Battery Cold Cranking Amps | 1,000 A | 1,000 A |
| Exhaust Emission | EPA Tier 4 Final | EPA Tier 4 Final |
| Specification | Metric | Imperial |
|---|---|---|
| Width (with trailer) | 1,480 mm | 58.3 in |
| Height (with trailer) | 1,748 mm | 68.8 in |
| Length (with trailer) | 3,349 mm | 131.9 in |
| Shipping Weight (with trailer) | 981.0 kg | 2,162.7 lbs |
Note: Due to the size of this item, the shipping cost provided is an estimate. Final shipping charges may vary based on your complete delivery address and any specific delivery requirements.
This product can expose you to chemicals, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to P65Warnings
